DTC C0052-14: Steering Angle Sensor A Signal Circuit Malfunction: Notes
WARNING: This page is about a different car, the 2016 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.
| System malfunction location |
Steering angle sensor A signal circuit malfunction |
| Detection condition |
- The start stop unit detects an open circuit in the steering angle sensor A signal circuit or a short to ground.
|
| Fail-safe |
- |
| Possible cause |
- Steering angle sensor connector or terminal malfunction
- Start stop unit connector or terminal malfunction

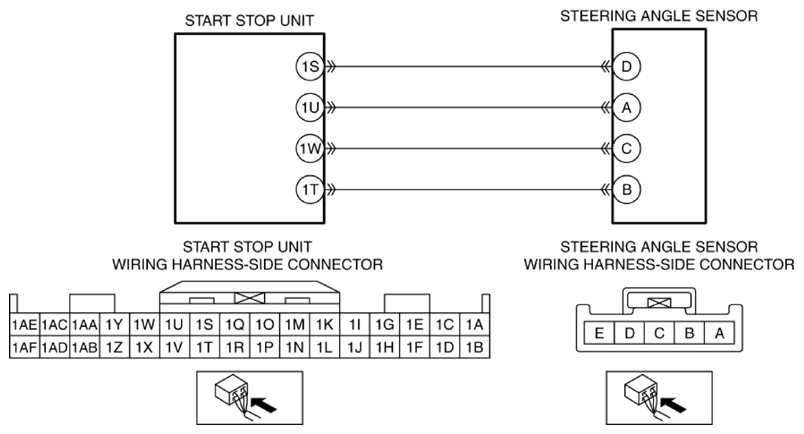

- Short to ground in wiring harness between start stop unit terminal 1U and steering angle sensor terminal A
- Open circuit in wiring harness between start stop unit terminal 1U and steering angle sensor terminal A
- Steering angle sensor malfunction
- Start stop unit malfunction
|
|
|
