DTC C0040-24: Brake Switch (No. 1 Signal) Circuit Malfunction: Notes
WARNING: This page is about a different car, the 2016 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.
| System malfunction location |
Brake switch (No. 1 signal) circuit malfunction |
| Detection condition |
- With the ignition switched ON (engine off or on), the start stop unit detects that the brake switch No. 1 signal is in the on condition for 3 s or more
continuously for a continuous 5 times
even though brake switch No. 2 signal changes.
|
| Fail-safe |
- Perform the brake switch (No. 1 signal) control based on the CAN signal.
|
| Possible cause |
- Brake switch connector or terminal malfunction
- Brake switch (No. 1 signal) malfunction
- Start stop unit connector or terminal malfunction

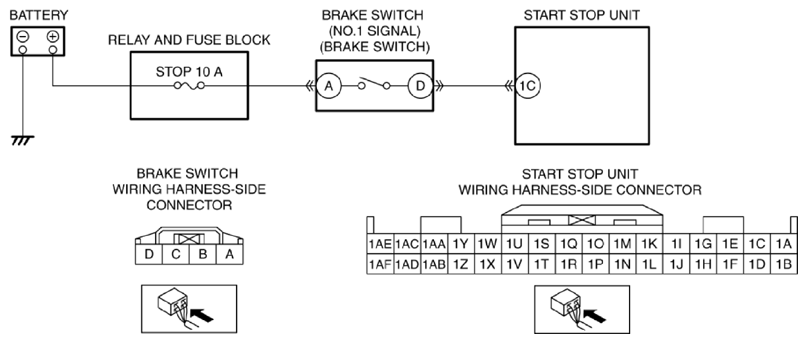

- Short to power supply in wiring harness between brake switch terminal D and start stop unit terminal 1C
- Start stop unit malfunction
|
|
|
