DTC B112A-11: IG2 Relay Circuit Malfunction: Notes
WARNING: This page is about a different car, the 2016 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.
| System malfunction location |
IG2 relay circuit malfunction |
| Detection condition |
- With the ignition switched ON (engine off or on), the start stop unit detects IG2 relay circuit voltage of 2.5 V or less
for 0.5 s or more
.
|
| Fail-safe |
- |
| Possible cause |
- Front body control module (FBCM) connector or terminal malfunction
- Start stop unit connector or terminal malfunction

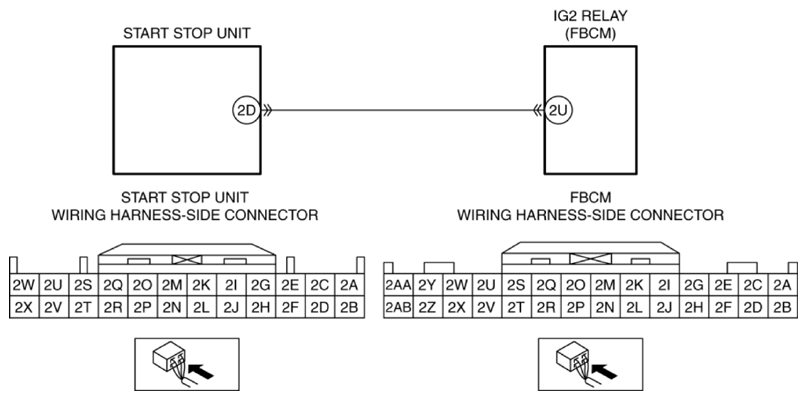

- Short to ground in wiring harness between start stop unit terminal 2D and front body control module (FBCM) terminal 2U
- Front body control module (FBCM) malfunction
- Start stop unit malfunction
|
|
|
