DTC B10E7-12: IG1 Relay Circuit Malfunction

WARNING: This page is about a different car, the 2016 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.

System malfunction location	IG1 relay circuit malfunction
Detection condition	The start stop unit detects IG1 relay output monitor voltage of 2.5 V or more for 0.5 s or more with the ignition switched off or ACC.
Fail-safe	-

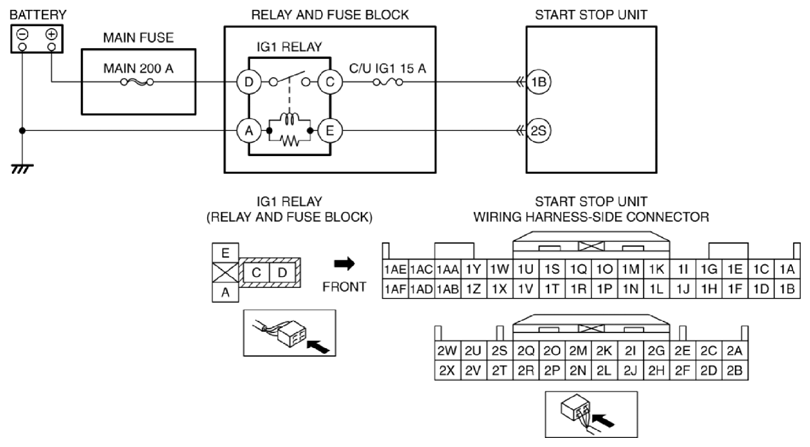

Possible cause	IG1 relay malfunction Start stop unit connector or terminal malfunction Short to power supply in wiring harness between IG1 relay terminal E and start stop unit terminal 2S Start stop unit malfunction

Step	Inspection		Action
1	INSPECT IG1 RELAY FOR MALFUNCTION Switch the ignition to off. Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0, SKYACTIV-G 2.5] .) Remove the IG1 relay. Inspect the IG1 relay. (See RELAY INSPECTION .) Is the IG1 relay normal?	Yes	Go to the next step.
1		No	Replace the IG1 relay, then go to Step 4.
2	INSPECT START STOP UNIT CONNECTOR CONDITION Disconnect the start stop unit connector. Inspect the connector engagement and connection condition and inspect the terminals for damage, deformation, corrosion, or disconnection. Is the connector normal?	Yes	Go to the next step.
2		No	Repair or replace the connector, then go to Step 4.
3	INSPECT IG1 RELAY CIRCUIT FOR SHORT TO POWER SUPPLY Reconnect all the disconnected connectors. Connect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0, SKYACTIV-G 2.5] .) Measure the voltage at start stop unit terminal 2S (vehicle wiring harness side). Is the voltage 2.5 V or more?	Yes	Repair or replace the wiring harness which has a short to the power supply, then go to the next step.
3		No	Go to the next step.
4	VERIFY THAT REPAIRS HAVE BEEN COMPLETED Reconnect all the disconnected connectors. Reconnect the disconnected negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0, SKYACTIV-G 2.5] .) Clear DTC for the start stop unit using the M-MDS. (See CLEARING DTC [START STOP UNIT] .) Switch the ignition to off and wait for 0.5 s or more. Perform the DTC inspection for the start stop unit using the M-MDS. (See DTC INSPECTION [START STOP UNIT] .) Is the DTC B10E7:12 displayed?	Yes	Repeat the inspection from Step 1. If the malfunction recurs, replace the start stop unit, then go to the next step. (See START STOP UNIT REMOVAL/INSTALLATION .)
4		No	Go to the next step.
5	VERIFY IF OTHER DTCs DISPLAYED Are any other DTCs displayed?	Yes	Repair the malfunctioning part according to the applicable DTC troubleshooting. (See DTC TABLE [START STOP UNIT] .)
5		No	DTC troubleshooting completed.
