DTC B10E7-11: IG1 Relay Circuit Malfunction: Notes
WARNING: This page is about a different car, the 2016 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.
| System malfunction location |
IG1 relay circuit malfunction |
| Detection condition |
- The ignition is switched ON (engine off or on) and the starter stop unit detects voltage from IG1 relay output monitor as less than 2.5 V
for 0.5 s or more
while the engine is not being cranked.
|
| Fail-safe |
- |
| Possible cause |
- IG1 relay malfunction
- Start stop unit connector or terminal malfunction

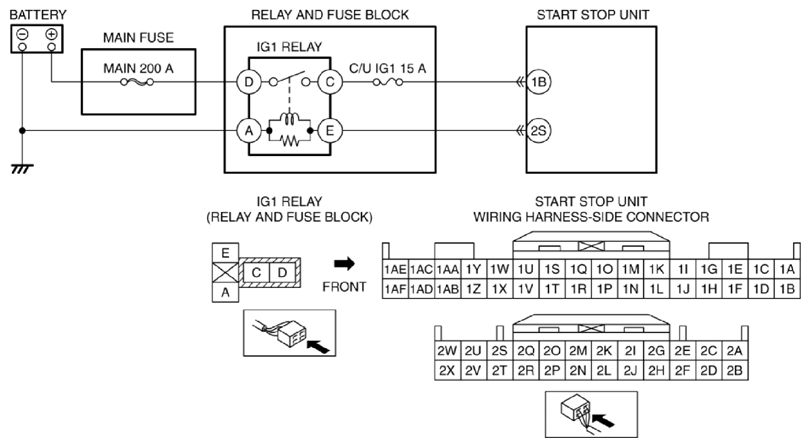

- Short to ground in wiring harness between IG1 relay terminal E and start stop unit terminal 2S
- Start stop unit malfunction
|
|
|
