DTC B10AC-23: Cruise Control Switch Circuit Malfunction

WARNING: This page is about a different car, the 2016 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.

System malfunction location	Cruise control switch circuit malfunction
Detection condition	The start stop unit detects any cruise control switch stuck on for 2 min or more with the ignition switched ON (engine off or on).
Fail-safe	-

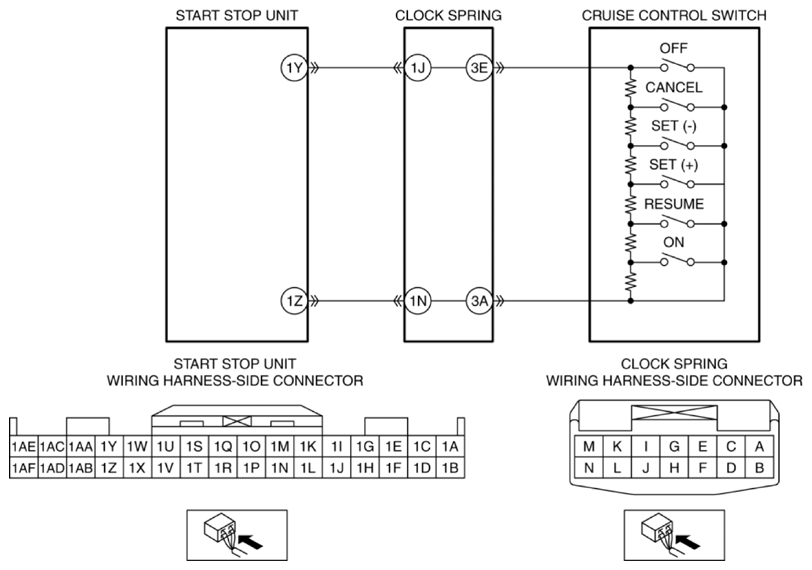

Possible cause	Instrument cluster configuration error Clock spring connector or terminal malfunction Clock spring malfunction Start stop unit connector or terminal malfunction Short to power supply in wiring harness between start stop unit terminal 1Z and clock spring terminal 1N (start stop unit side) Cruise control switch malfunction Start stop unit malfunction

Step	Inspection		Action
1	PERFORM INSTRUMENT CLUSTER CONFIGURATION (USING AS-BUILT DATA) Using the M-MDS, perform the instrument cluster configuration with the As-Built data. (See INSTRUMENT CLUSTER CONFIGURATION (USING AS-BUILT DATA) .) Clear DTC for the start stop unit using the M-MDS. (See CLEARING DTC [START STOP UNIT] .) Perform the DTC inspection for the start stop unit using the M-MDS. (See DTC INSPECTION [START STOP UNIT] .) Is DTC B10AC:23 displayed?	Yes	Using the M-MDS, re-perform the instrument cluster configuration using the As-Built data, then go to the next step. (See INSTRUMENT CLUSTER CONFIGURATION (USING AS-BUILT DATA) .)
1		No	Go to Step 8.
2	INSPECT CLOCK SPRING CONNECTOR CONDITION Switch the ignition to off. Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0, SKYACTIV-G 2.5] .) Disconnect the clock spring connector. Inspect the connector engagement and connection condition and inspect the terminals for damage, deformation, corrosion, or disconnection. Is the connector normal?	Yes	Go to the next step.
2		No	Repair or replace the connector, then go to Step 7.
3	INSPECT CLOCK SPRING Inspect the clock spring. (See CLOCK SPRING INSPECTION [TWO-STEP DEPLOYMENT CONTROL SYSTEM] .) (See CLOCK SPRING INSPECTION [STANDARD DEPLOYMENT CONTROL SYSTEM] .) Is the clock spring normal?	Yes	Go to the next step.
3		No	Replace the clock spring, then go to Step 7. (See CLOCK SPRING REMOVAL/INSTALLATION [TWO-STEP DEPLOYMENT CONTROL SYSTEM] .) (See CLOCK SPRING REMOVAL/INSTALLATION [STANDARD DEPLOYMENT CONTROL SYSTEM] .)
4	INSPECT START STOP UNIT CONNECTOR CONDITION Disconnect the start stop unit connector. Inspect the connector engagement and connection condition and inspect the terminals for damage, deformation, corrosion, or disconnection. Is the connector normal?	Yes	Go to the next step.
4		No	Repair or replace the connector, then go to Step 7.
5	INSPECT CRUISE CONTROL SWITCH CIRCUIT FOR SHORT TO POWER SUPPLY Verify that the PCM and clock spring connectors are disconnected. Connect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0, SKYACTIV-G 2.5] .) Switch the ignition ON (engine off or on). Measure the voltage at clock spring (start stop unit side) (vehicle wiring harness side) terminal 1N. Is the voltage 0 V?	Yes	Go to the next step.
5		No	Repair or replace the wiring harness which is shorted to power supply, then go to Step 7.
6	INSPECT CRUISE CONTROL SWITCH Inspect the cruise control switch. (See CRUISE CONTROL SWITCH INSPECTION [SKYACTIV-G 2.0, SKYACTIV-G 2.5] .) Is the cruise control switch normal?	Yes	Go to the next step.
6		No	Replace the cruise control switch, then go to the next step. (See STEERING SWITCH REMOVAL/INSTALLATION .)
7	VERIFY THAT REPAIRS HAVE BEEN COMPLETED Reconnect all the disconnected connectors. Reconnect the disconnected negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0, SKYACTIV-G 2.5] .) Clear DTC for the start stop unit using the M-MDS. (See CLEARING DTC [START STOP UNIT] .) Switch the ignition ON (engine off or on) and wait for 2 min or more . Perform the DTC inspection for the start stop unit using the M-MDS. (See DTC INSPECTION [START STOP UNIT] .) Is DTC B10AC:23 displayed?	Yes	Repeat the inspection from Step 1. If the malfunction recurs, replace the start stop unit, then go to the next step. (See START STOP UNIT REMOVAL/INSTALLATION .)
7		No	Go to the next step.
8	VERIFY IF OTHER DTCs DISPLAYED Are any other DTCs displayed?	Yes	Repair the malfunctioning part according to the applicable DTC troubleshooting. (See DTC TABLE [START STOP UNIT] .)
8		No	DTC troubleshooting completed.
