DTC B108C-23 Push Button Start Switch 2 Circuit Malfunction: Notes

WARNING: This page is about a different car, the 2016 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.

System malfunction location	Push button start switch 2 circuit malfunction
Detection condition	Start stop unit detects push button start switch 2 ON stuck for 120 s or more .
Fail-safe	Perform the control with push button start switch 2 turned off.

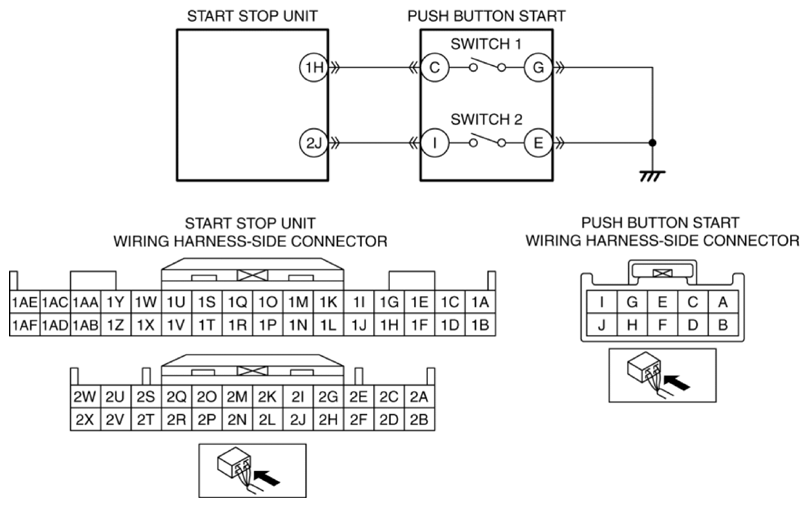

Possible cause	Push button start connector or terminal malfunction Start stop unit connector or terminal malfunction Short to ground in wiring harness between start stop unit terminal 2J and push button start terminal I Push button start switch 2 malfunction Start stop unit malfunction
