DTC B108B-24: Push Button Start Switch 1 Circuit Malfunction: Notes
WARNING: This page is about a different car, the 2016 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.
| System malfunction location |
Push button start switch 1 circuit malfunction |
| Detection condition |
- The start stop unit detects that push button start switch 1 is kept in an off condition 5 times or more
even though push button start switch 2 is on.
|
| Fail-safe |
- |
| Possible cause |
- Push button start connector or terminal malfunction

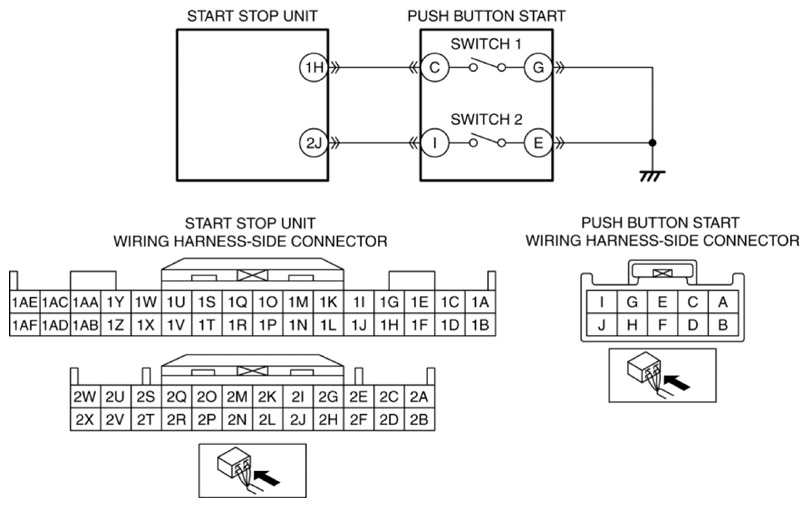

- Open circuit in wiring harness between push button start terminal G and body ground
- Start stop unit connector or terminal malfunction
- Open circuit in wiring harness between start stop unit terminal 1H and push button start terminal C
- Push button start switch 1 malfunction
- Start stop unit malfunction
|
|
|
