Drive Plate Installation Bolts Removal Note

WARNING: This page is about a different car, the 2016 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.
  1. Set the SST  against the drive plate.

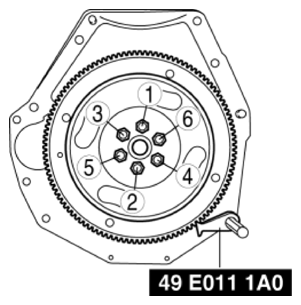

    Fig 1: Drive Plate Installation Bolts Loosening Sequence
    G10937256Courtesy of MAZDA MOTORS CORP.
  2. Loosen the drive plate installation bolts uniformly in two or three steps in the order shown in the figure, then remove the bolts and the drive plate.
