Transaxle Mounting Bolt Removal Note

WARNING: This page is about a different car, the 2016 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
  • Remove the transaxle carefully, holding it steady. If the transaxle falls it could be damaged or cause injury.
  1. Adjust the SST  and lean the engine toward the transaxle.

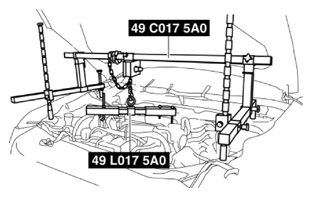

    Fig 1: Adjusting SST (49 C017 5A0)
    G10937186Courtesy of MAZDA MOTORS CORP.
  2. Support the transaxle on a jack.
    Fig 2: Supporting Transaxle On Jack
    G10937187Courtesy of MAZDA MOTORS CORP.
  3. Remove the transaxle mounting bolts (lower side).
  4. Remove the transaxle.
