Fuel-Filler Lid Opener

WARNING: This page is about a different car, the 2016 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.

Open the fuel-filler lid.
Remove the nut.

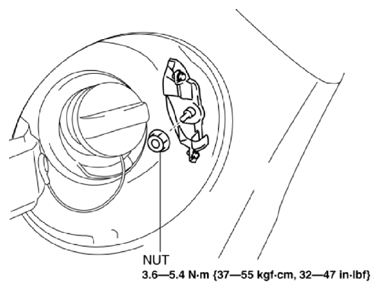

Fig 1: Opening Fuel-Filler Lid
Courtesy of MAZDA MOTORS CORP.
Remove the service hole cover on the trunk side trim.

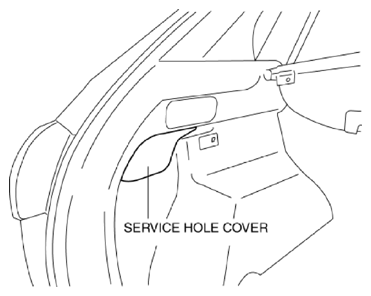

Fig 2: Identifying Service Hole Cover On Trunk Side Trim
Courtesy of MAZDA MOTORS CORP.
While pressing the tabs of the stopper bracket in the direction of arrow (1) shown in the figure, press it in the direction of arrow (2) to detach it from the body.

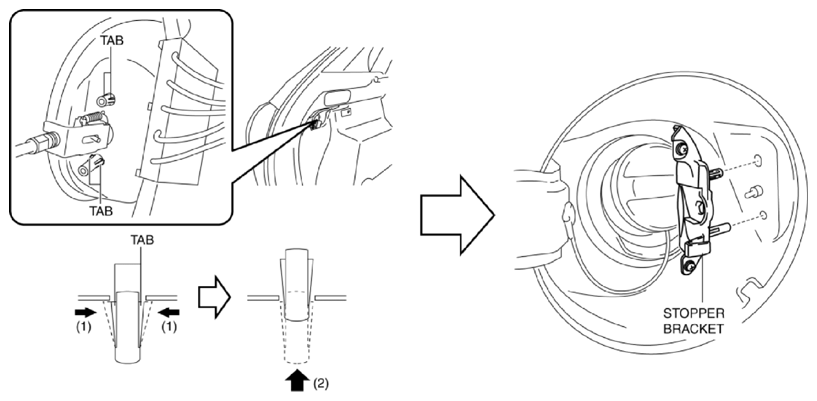

Fig 3: Pressing Stopper Bracket Tabs
Courtesy of MAZDA MOTORS CORP.
Detach all the stopper bracket tabs from the body and remove the stopper bracket.
Remove the fuel-filler lid opener in the direction of the arrow.

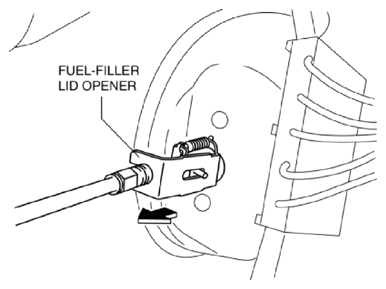

Fig 4: Removing Fuel-Filler Lid Opener
Courtesy of MAZDA MOTORS CORP.
Disconnect the fuel-filler lid opener cable from the fuel-filler lid opener.

Fig 5: Disconnecting Fuel-Filler Lid Opener Cable
Courtesy of MAZDA MOTORS CORP.
Install in the reverse order of removal.
