Fuel-Filler Lid Opener Lever

WARNING: This page is about a different car, the 2016 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the front scuff plate. (Driver's side) (See FRONT SCUFF PLATE REMOVAL/INSTALLATION .)
  2. Remove the front side trim. (Driver's side) (See FRONT SIDE TRIM REMOVAL/INSTALLATION .)
  3. Partially peel back the floor covering.
  4. Remove the bolts.

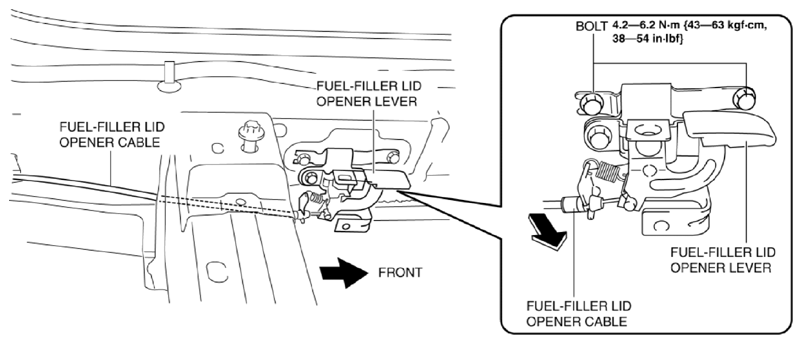

    Fig 1: Removing Front Side Trim
    G10938786Courtesy of MAZDA MOTORS CORP.
  5. Disconnect the fuel-filler lid opener cable from the fuel-filler lid opener lever.
  6. Install in the reverse order of removal.
