Front Door Key Cylinder Switch Unlock-Side Inspection

WARNING: This page is about a different car, the 2016 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.

Press in the latch lever of the front door latch and lock actuator using a flathead screwdriver, and set it to the latched condition.

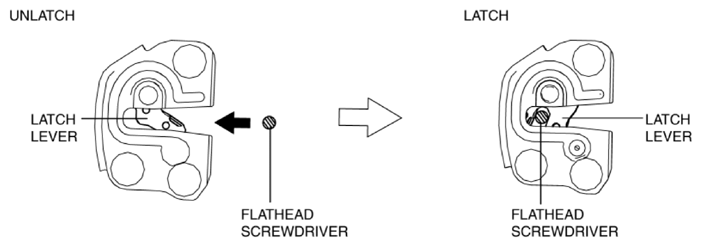

Fig 1: Press In Front Door Latch And Lock Actuator Latch Lever
Courtesy of MAZDA MOTORS CORP.
Rotate the front door key cylinder in the direction of the arrow until it stops to set the front door key cylinder switch to the unlocked condition.

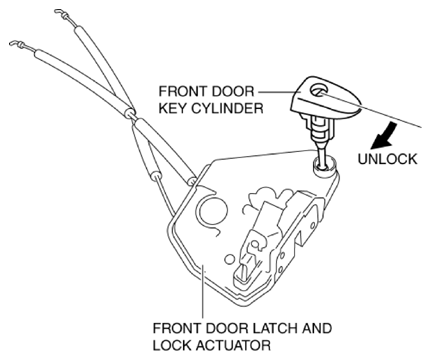

Fig 2: Rotating Front Door Key Cylinder
Courtesy of MAZDA MOTORS CORP.
To verify that the switch is in the unlocked position, press down the rod holder in the direction of the arrow and verify that the latch lever moves.

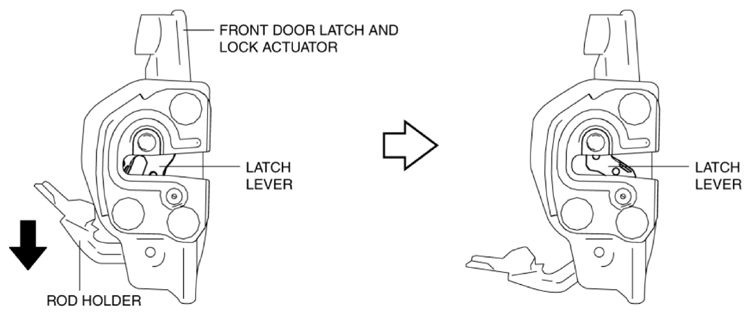

Fig 3: Pressing Down Rod Holder
Courtesy of MAZDA MOTORS CORP.
NOTE:
- If the latch lever does not move, the front door key cylinder switch is not in the unlocked position. Repeat the procedure from Step 2.
Verify that the continuity of the front door key cylinder is as indicated in the chart.

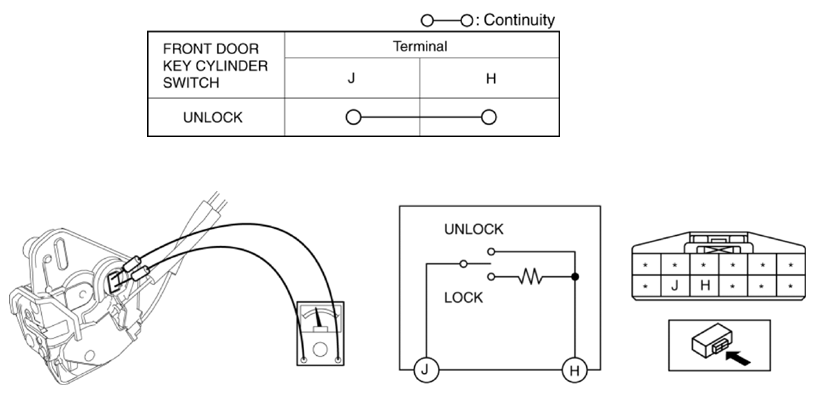

Fig 4: Front Door Key Cylinder Switch Terminal Continuity Chart

Courtesy of MAZDA MOTORS CORP.

If not as indicated in the chart, replace the front door latch and lock actuator.
