Passenger's Side

WARNING: This page is about a different car, the 2016 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION .)
  2. Remove the power window subswitch cover. (See POWER WINDOW SUBSWITCH REMOVAL/INSTALLATION .)
  3. While pulling the power window subswitch cover in the direction of arrow (1) shown in the figure, pull the door lock switch in the direction of arrow (2) shown in the figure, and detach the door lock switch tabs from the power window subswitch cover.

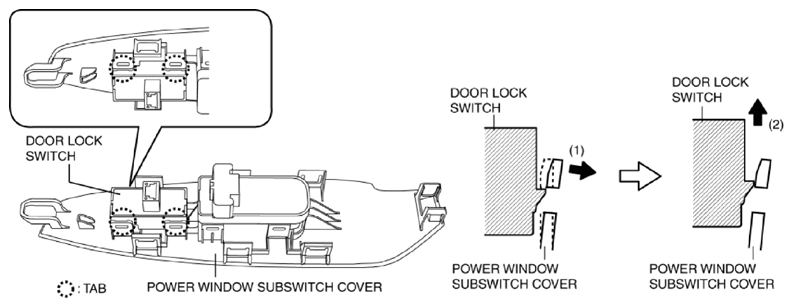

    Fig 1: Pulling Power Window Subswitch Cover
    G10938767Courtesy of MAZDA MOTORS CORP.
  4. Detach all of the door lock switch tabs from the power window switch cover and remove the door lock switch.
  5. Install in the reverse order of removal.
