Driver's Side

WARNING: This page is about a different car, the 2016 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION .)
  2. Remove the door lock switch. (See POWER WINDOW MAIN SWITCH REMOVAL/INSTALLATION .)
  3. Verify that the continuity is as indicated in the chart.

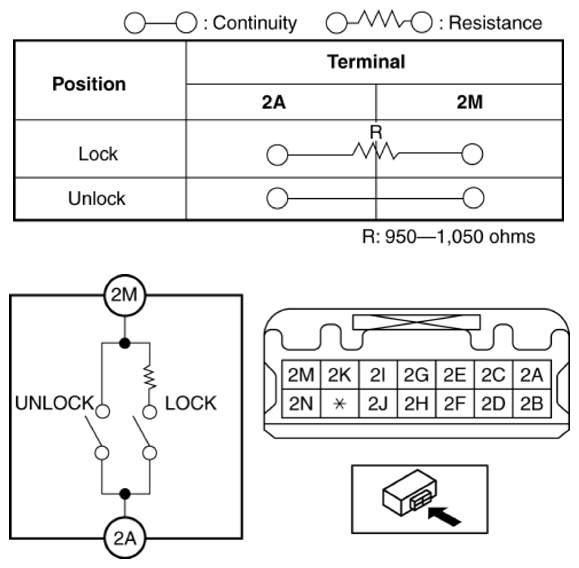

Fig 1: Door Lock Switch Terminal Continuity Chart (Driver Side)
G10938768Courtesy of MAZDA MOTORS CORP.
