Vacuum Hose Removal/Installation

WARNING: This page is about a different car, the 2016 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.

Pinch open the clamp using pliers and disconnect the vacuum hose.

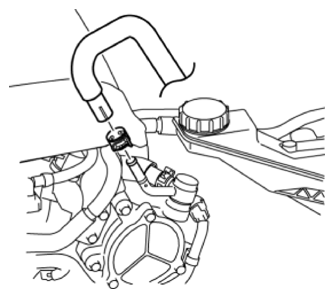

Fig 1: Identifying Vacuum Hose Clamp
Courtesy of MAZDA MOTORS CORP.
Pinch open the clamp using pliers and disconnect the vacuum hose.

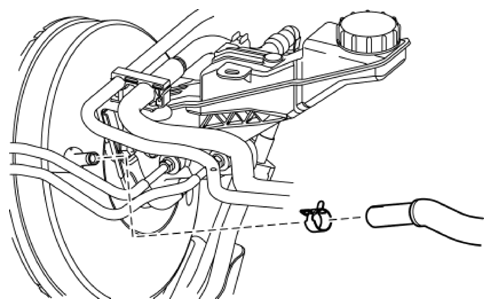

Fig 2: Identifying Vacuum Hose Clamp
Courtesy of MAZDA MOTORS CORP.
Remove the vacuum hose.
Install in the reverse order of removal.
