Disc Pad Thickness Inspection
WARNING: This page is about a different car, the 2016 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.
- Jack up the front of the vehicle and support it with safety stands.
- Remove the wheels and tires.

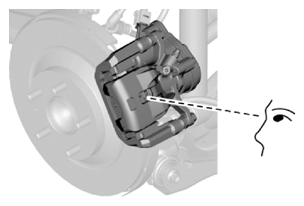

- Verify the remaining thickness of the pads.
Minimum rear disc pad thickness
- 2.0 mm {0.079 in} min.
- Replace the pads as a set (right and left wheels) if either one is at or less than the minimum thickness.
