Pedal Height Inspection

WARNING: This page is about a different car, the 2016 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.

Measure the distance from the center of the upper surface of the pedal pad to the insulator and verify that it is as specified.

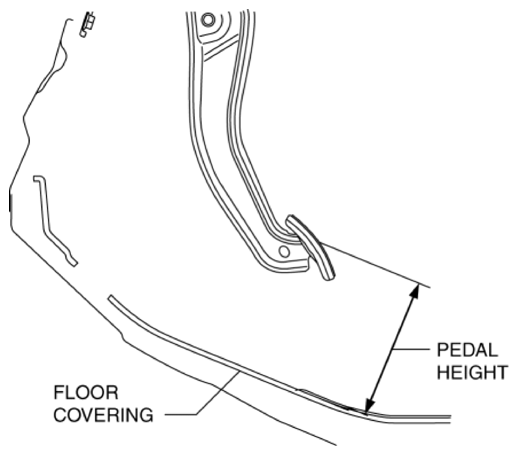

Fig 1: Identifying Pedal Height Dimension
Courtesy of MAZDA MOTORS CORP.
- If not within the specification, inspect the following items and repair or replace the applicable part if there is any malfunction.
  - Power brake unit installation condition
  - Deformation of or damage to the power brake unit fork
  - Brake pedal installation condition
  - Clevis pin wear
- If there is no malfunction in the above items, replace the brake pedal.
  Brake pedal height (reference value)
- 136 mm {5.35 in}
