With Electric Parking Brake

WARNING: This page is about a different car, the 2017 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0, SKYACTIV-G 2.5] .)
  2. Remove the upper panel.(See UPPER PANEL REMOVAL .) (See UPPER PANEL INSTALLATION .)
  3. Remove the selector lever knob. (See AUTOMATIC TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION .)
  4. Remove the shift panel. (See SHIFT PANEL REMOVAL/INSTALLATION .)
  5. Turn over the removed shift panel and remove the boots from the securing parts shown in the figure.
    Fig 1: Removing Boots From Securing Parts
    G11450710Courtesy of MAZDA MOTORS CORP.
  6. Remove in the order indicated in the table.
  7. Install in the reverse order of removal.

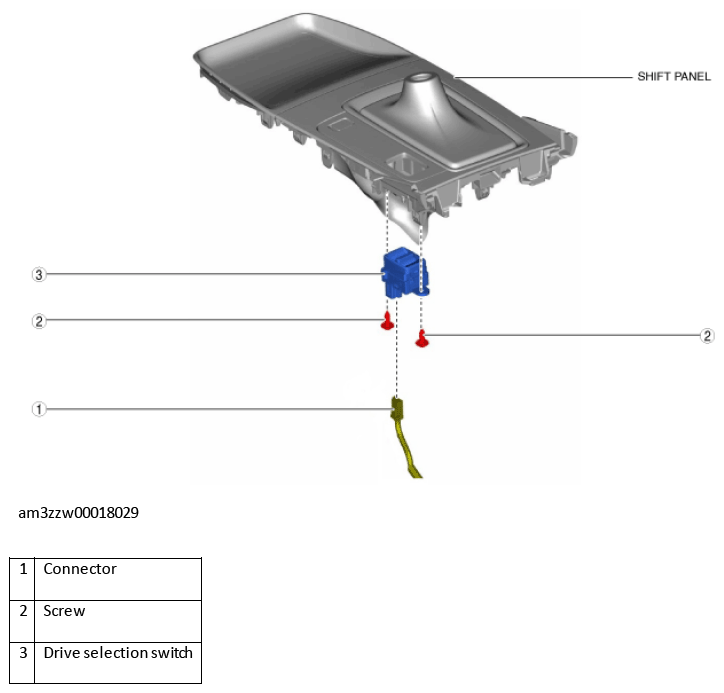

Fig 2: Removing/Installing Shift Panel Parts
G11450711Courtesy of MAZDA MOTORS CORP.
