Troubleshooting Procedure

WARNING: This page is about a different car, the 2017 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.

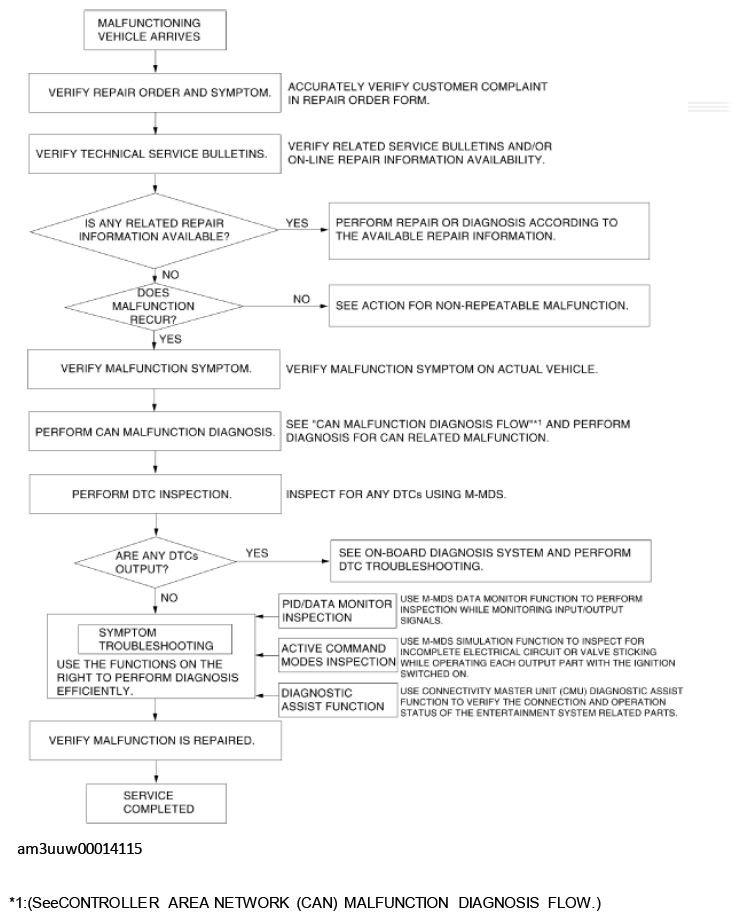

Fig 1: Audio Amplifier Troubleshooting Flow Chart

Courtesy of MAZDA MOTORS CORP.
