Section 174 (Symptom Troubleshooting - Manual A/C)
>>
Symptom Troubleshooting System Wiring Diagram [Manual Air Conditioner]
Symptom Troubleshooting System Wiring Diagram [Manual Air Conditioner]
WARNING:
This page is about a different car, the 2017 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.

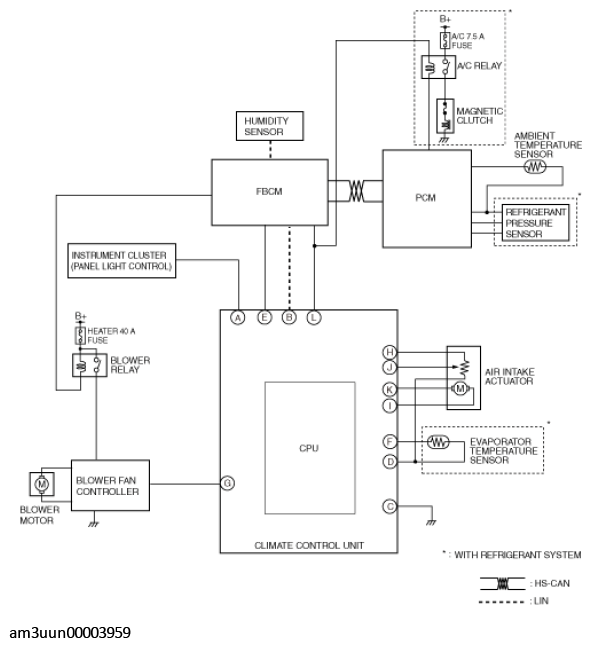

Fig 1: Symptom Troubleshooting System Wiring Diagram (Manual Air Conditioner)
Courtesy of MAZDA MOTORS CORP.
Fig 2: Climate Control Unit Wiring Harness Side Connector Terminals
Courtesy of MAZDA MOTORS CORP.
