Rear Upper Arm Inner Bolt Installation Note

WARNING: This page is about a different car, the 2017 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

When newly replacing the rear upper arm, place alignment marks on the new part in the same position as the removed rear upper arm.

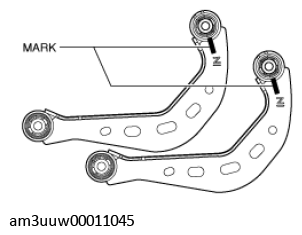

Fig 1: Placing Alignment Marks On Rear Upper Arm

Courtesy of MAZDA MOTORS CORP.

Align the alignment marks and tighten the rear upper arm inner bolt to the specified torque.
Tightening torque

78-105 N.m {8.0-10 kgf.m, 58-77 ft.lbf}
Lift up the rear crossmember component using a jack and install the rear crossmember installation nuts.

Fig 2: Supporting Rear Crossmember With Jack
Courtesy of MAZDA MOTORS CORP.

Tightening torque

91-111 N.m {9.3-11 kgf.m, 68-81 ft.lbf}
