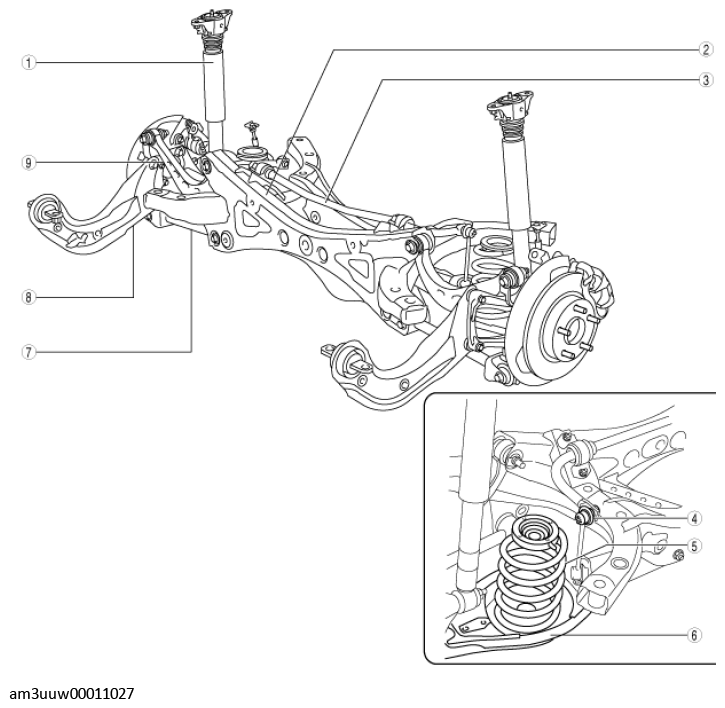

Rear Suspension Location Index
WARNING: This page is about a different car, the 2017 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.
COMPONENT DESCRIPTION
| 1 | Rear shock absorber (See REAR SHOCK ABSORBER REMOVAL/INSTALLATION .) (See REAR SHOCK ABSORBER INSPECTION .) (See REAR SHOCK ABSORBER DISPOSAL .) |
| 2 | Rear crossmember (See REAR CROSSMEMBER REMOVAL/INSTALLATION .) |
| 3 | Rear stabilizer (See REAR STABILIZER REMOVAL/INSTALLATION .) |
| 4 | Rear stabilizer control link (See REAR STABILIZER CONTROL LINK INSPECTION .) (See REAR STABILIZER REMOVAL/INSTALLATION .) |
| 5 | Rear coil spring (See REAR COIL SPRING REMOVAL/INSTALLATION .) |
| 6 | Rear lower arm (See REAR LOWER ARM REMOVAL/INSTALLATION .) |
| 7 | Rear lateral link (See REAR LATERAL LINK REMOVAL/INSTALLATION .) |
| 8 | Rear trailing link (See REAR TRAILING LINK REMOVAL/INSTALLATION .) |
| 9 | Rear upper arm (See REAR UPPER ARM REMOVAL/INSTALLATION .) |
