Rear Stabilizer Removal/Installation: Notes
WARNING: This page is about a different car, the 2017 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.
- Remove the wheel and tire. (See WHEEL AND TIRE REMOVAL/INSTALLATION .)
- Remove the rear coil spring. (See REAR COIL SPRING REMOVAL/INSTALLATION .)
- Remove in the order indicated in the table.
- Install in the reverse order of removal. (See Suspension Links Installation Note .)

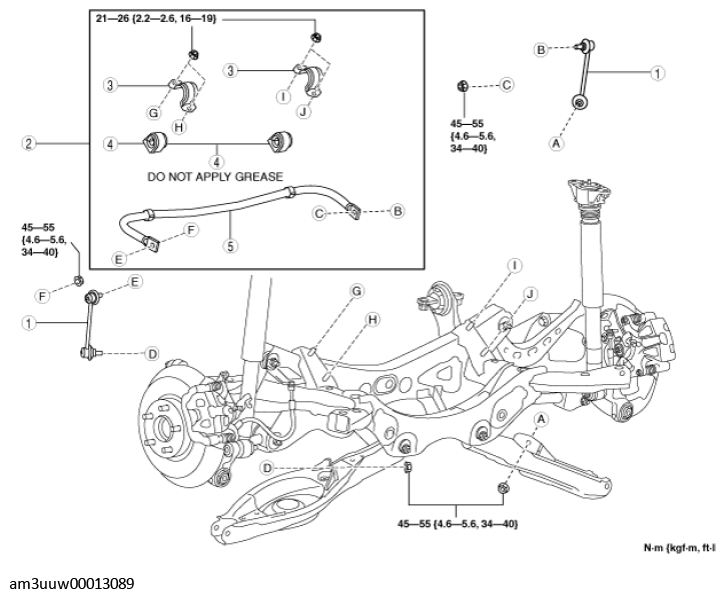

COMPONENT DESCRIPTION
| 1 | Rear stabilizer control link |
| 2 | Rear stabilizer component (See Rear Stabilizer Component Removal Note .) (See Rear Stabilizer Component Installation Note .) |
| 3 | Rear stabilizer bracket (See Rear Stabilizer Bushing, Rear Stabilizer Bracket Installation Note .) |
| 4 | Rear stabilizer bushing (See Rear Stabilizer Bushing, Rear Stabilizer Bracket Installation Note .) |
| 5 | Rear stabilizer |
