Rear Lower Arm Installation Note

WARNING: This page is about a different car, the 2017 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.

When replacing the rear lower arm (LH), install the rivet nut using a rivet nut tool.

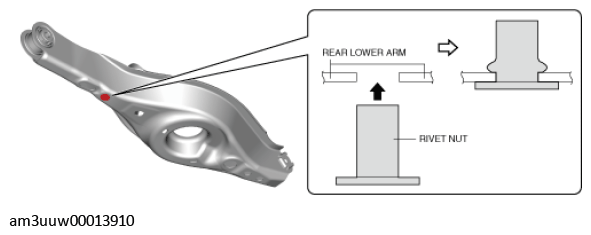

Fig 1: Installing Rivet Nut Using Rivet Nut Tool

Courtesy of MAZDA MOTORS CORP.
