Rear Lateral Link Removal/Installation: Notes

WARNING: This page is about a different car, the 2017 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.

Remove the wheel and tire. (See WHEEL AND TIRE REMOVAL/INSTALLATION .)
Disconnect the rear stabilizer control link lower side nut. (See REAR STABILIZER REMOVAL/INSTALLATION .)

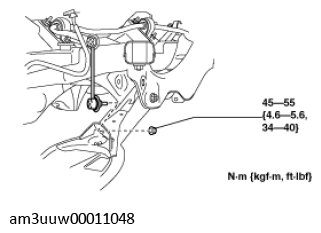

Fig 1: Removing Rear Stabilizer Control Link Lower Side Nut
Courtesy of MAZDA MOTORS CORP.
Remove in the order indicated in the table.
Install in the reverse order of removal. (Suspension Links Installation Note.)
When replacing the rear lateral link, inspect the wheel alignment and adjust it if necessary. (See REAR WHEEL ALIGNMENT .)

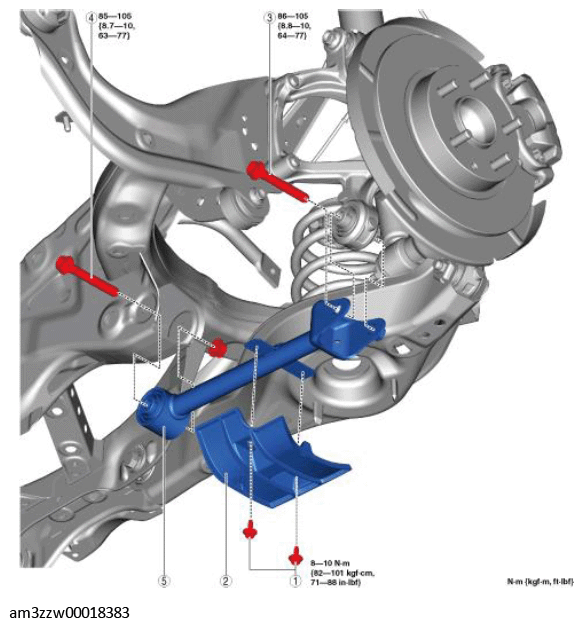

Fig 2: Installing Rear Lateral Link And Nut And Bolts

Courtesy of MAZDA MOTORS CORP.

COMPONENT DESCRIPTION

1	Protector installation bolt
2	Protector
3	Rear lateral link outer bolt
4	Rear lateral link inner bolt
5	Rear lateral link (See Rear Lateral Link Removal Note .) (See Rear Lateral Link Installation Note .)
