Rear Coil Spring Installation Note

WARNING: This page is about a different car, the 2017 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.

Install the rear coil spring so that the yellow paint is pointed upward of the vehicle.

Fig 1: Rear Coil Spring Yellow Paint Mark
Courtesy of MAZDA MOTORS CORP.
Align the upper end of the rear coil spring with the step of the upper spring seat rubber.
Align the lower end of the rear coil spring with the step of the lower spring seat rubber.
Position the jack under the rear lower arm and jack up slowly.

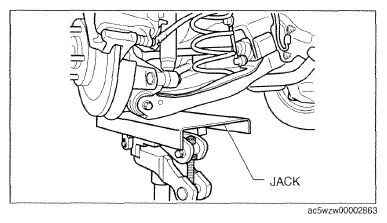

Fig 2: Supporting Rear Lower Arm Using Jack
Courtesy of MAZDA MOTORS CORP.
Install the rear lower arm outer bolt.
