Section 172 (On-Board Diagnostic - Radar Unit)
>>
On-Board Diagnostic Wiring Diagram Radar Unit
On-Board Diagnostic Wiring Diagram Radar Unit
WARNING:
This page is about a different car, the 2017 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.

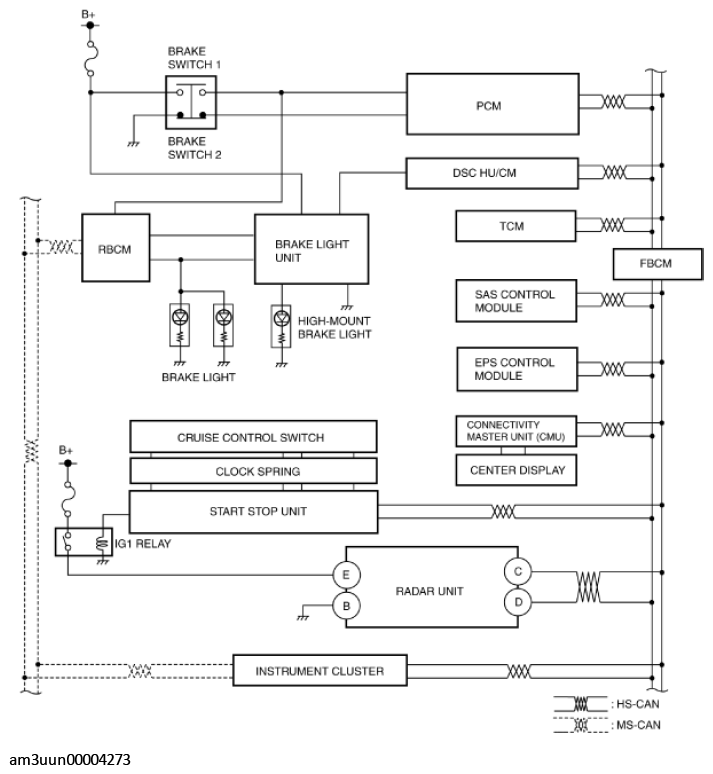

Fig 1: Radar Unit On-Board Diagnostic Wiring Diagram
Courtesy of MAZDA MOTORS CORP.
