Troubleshooting procedure

WARNING: This page is about a different car, the 2017 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.

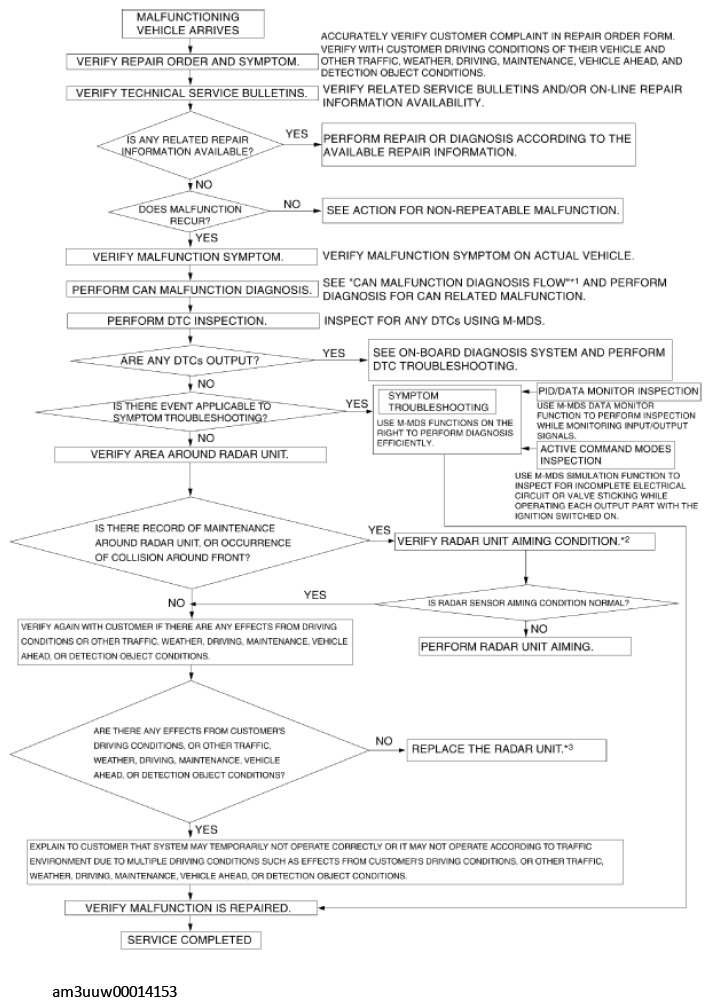

Fig 1: Foreword (Radar Unit) Troubleshooting Flowchart
G11540238Courtesy of MAZDA MOTORS CORP.

*1: (See CONTROLLER AREA NETWORK (CAN) MALFUNCTION DIAGNOSIS FLOW .)

*2: (See RADAR UNIT AIMING .)

*3: (See RADAR UNIT REMOVAL/INSTALLATION .)
