Rear Door Checker Removal/Installation

WARNING: This page is about a different car, the 2017 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.
  1. Fully close the rear door glass.
  2. Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION .)
  3. Remove the following parts:
    1. Rear door trim (See REAR DOOR TRIM REMOVAL/INSTALLATION .)
    2. Rear door speaker (See REAR DOOR SPEAKER REMOVAL/INSTALLATION .)

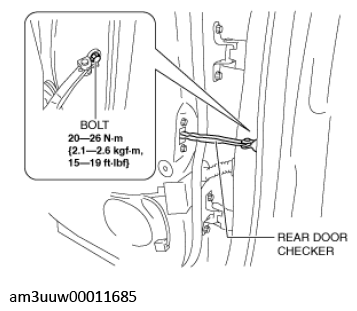

  4. Remove the bolt shown in the figure.
    Fig 1: Locating Rear Door Checker Bolts With Torque Specification
    G11447674Courtesy of MAZDA MOTORS CORP.

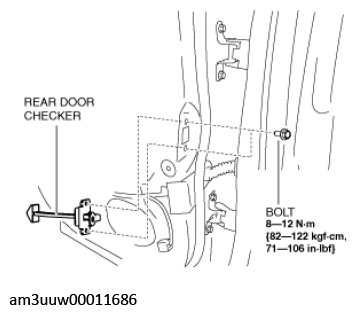

  5. Remove the bolts shown in the figure.
    Fig 2: Removing Bolt From Rear Door Checker
    G11447675Courtesy of MAZDA MOTORS CORP.
  6. Pull out the rear door checker from the rear speaker installation hole.
  7. Install in the reverse order of removal.
