Liftgate Adjustment

WARNING: This page is about a different car, the 2017 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.

Measure the gap and height difference between the liftgate and the body.
- If the measured value exceeds the standard clearance, adjust the liftgate using the following procedure:
Loosen the liftgate hinge installation bolts and adjust the liftgate.

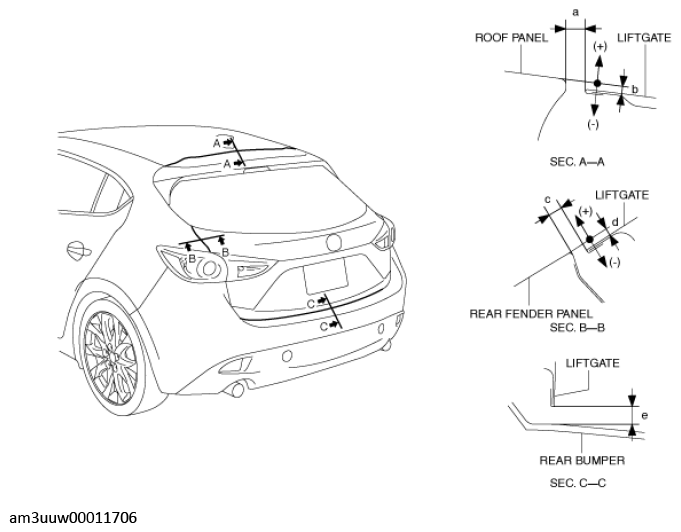

Fig 1: Measuring Height Difference Between Liftgate And Body
Courtesy of MAZDA MOTORS CORP.

Standard clearance

a: 5.1-7.1 mm {0.21-0.27 in}

b: -2.0-0.0 mm {-0.078-0.000 in}

c: 2.6-5.0 mm {0.11-0.19 in}

d: -1.9-0.5 mm {-0.07-0.01 in}

e: 4.3-8.3 mm {0.17-0.32 in}
Tighten the liftgate hinge installation bolts. (See LIFTGATE REMOVAL/INSTALLATION .)
If the liftgate does not open/close smoothly, adjust it by loosening the liftgate lock striker installation screw. (See LIFTGATE LOCK STRIKER REMOVAL/INSTALLATION .)
Spray or pour water on the door and surrounding area using a hose or high pressure water pressure car wash and verify that there is no water leakage.
