Connector Removal Note

WARNING: This page is about a different car, the 2017 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.
  1. Partially peel back the rubber boot in the direction of arrow shown in the figure and remove it from the connector.

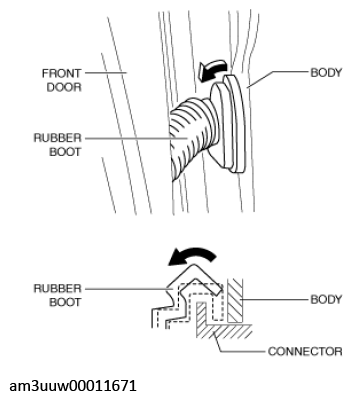

    Fig 1: Peeling Back Rubber Boot From Front Door Body
    G11447656Courtesy of MAZDA MOTORS CORP.
  2. Using a remover tool, press tabs in the directions of arrows (1) and (2) shown in the figure and remove the upper part of the connector from the body in the direction of arrow (3).

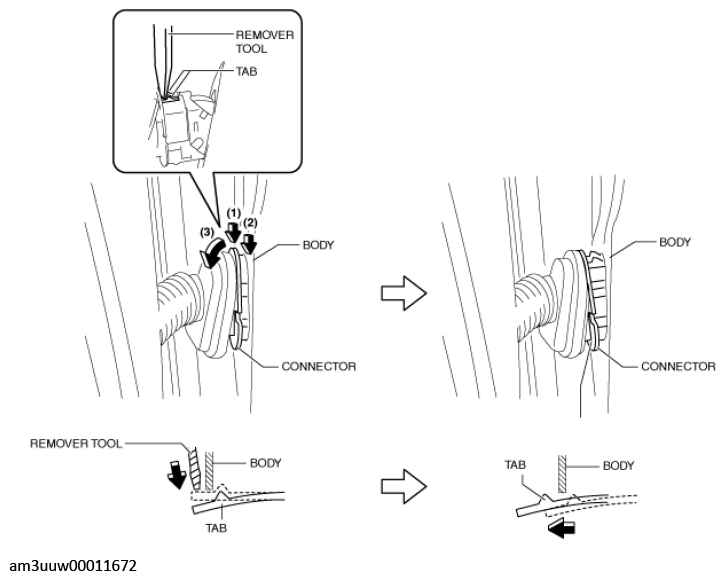

    Fig 2: Pressing Body Tabs On Front Door
    G11447657Courtesy of MAZDA MOTORS CORP.
  3. Using a remover tool, press tabs in the directions of arrows (1) and (2) shown in the figure and remove the connector from the body in the direction of arrow (3).

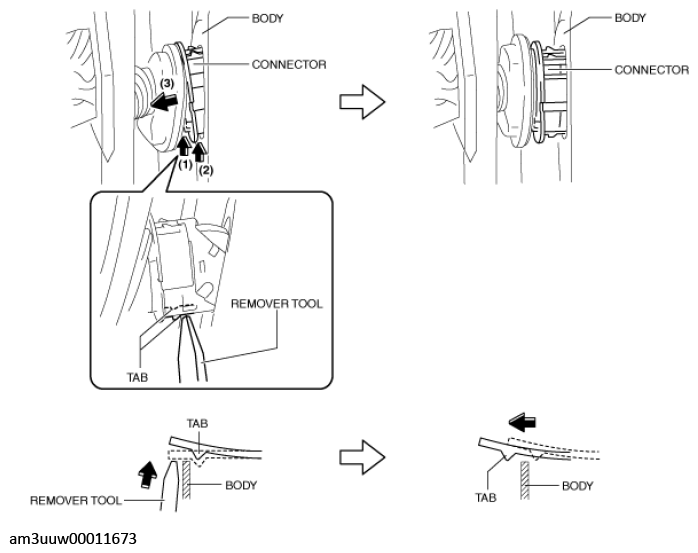

    Fig 3: Removing Connector From Body
    G11447658Courtesy of MAZDA MOTORS CORP.
  4. Release the lever lock by pressing the connector tab shown in the figure and tilt the lever in the direction of the arrow.

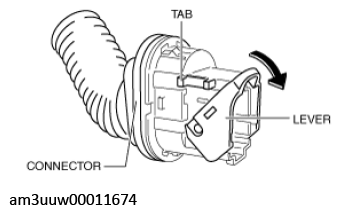

    Fig 4: Releasing Lever Lock
    G11447659Courtesy of MAZDA MOTORS CORP.
  5. Disconnect the connector.
