Exhaust System Insulator Removal/Installation

WARNING: This page is about a different car, the 2017 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.

Remove the exhaust system insulator in the order shown in the figure.
Install in the reverse order of removal.

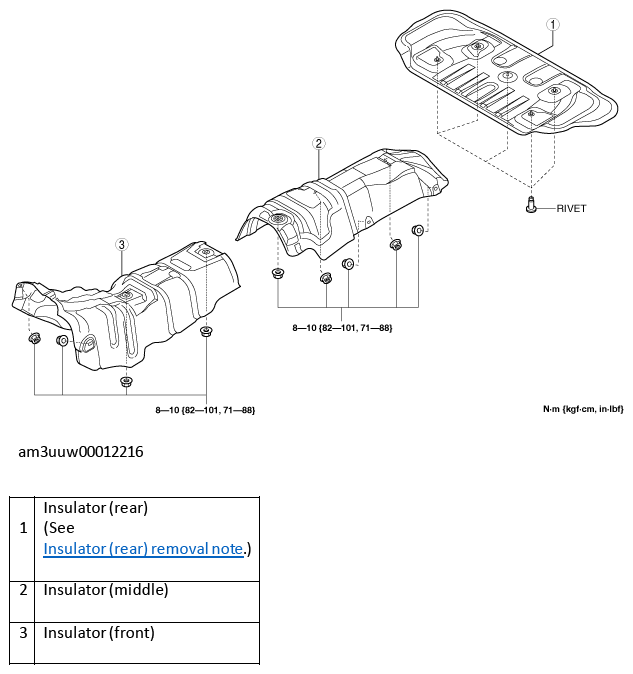

Fig 1: Removing/Installing Exhaust System Insulator Components With Torque Specification

Courtesy of MAZDA MOTORS CORP.
