Exhaust Manifold Insulator Removal Note

WARNING: This page is about a different car, the 2017 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the insulator as shown in the figure.

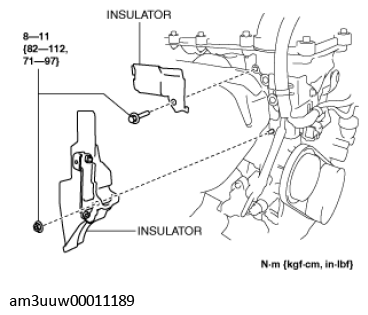

    Fig 1: Removing Exhaust Manifold Insulator
    G11450792Courtesy of MAZDA MOTORS CORP.
  2. Remove the No. 1 engine mount rubber. (See ENGINE REMOVAL/INSTALLATION .)
  3. Move the engine.
  4. Remove the exhaust manifold insulator.
