Wiper And Washer Switch Removal/Installation

WARNING: This page is about a different car, the 2017 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0, SKYACTIV-G 2.5] .)
  2. Remove the column cover. (See COLUMN COVER REMOVAL/INSTALLATION .)

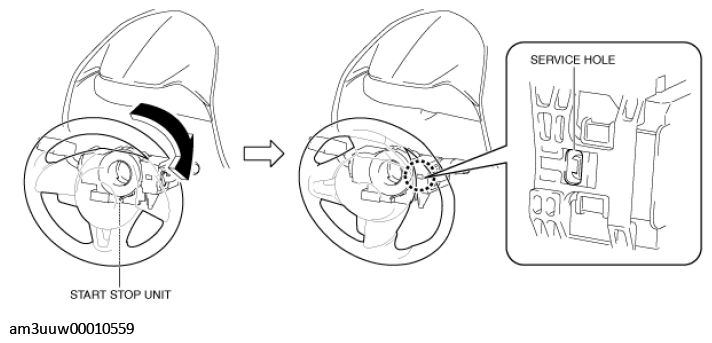

  3. Rotate the steering wheel until the service hole in the position shown in the figure is visible.
    Fig 1: Removing Steering Wheel
    G11453126Courtesy of MAZDA MOTORS CORP.
  4. While pressing the wiper and washer switch tab in the direction of the arrow (1) shown in the figure, pull out the wiper and washer switch in the direction of the arrow (2) shown in the figure, and detach the wiper and washer switch tab and the start stop unit.
    Fig 2: Pressing Wiper And Washer Switch Tab
    G11453127Courtesy of MAZDA MOTORS CORP.
  5. Remove the wiper and washer switch.
  6. Install in the reverse order of removal.
