Section 167 (Wiper/Washer System)
>>
Windshield Washer Nozzle Adjustment
>>
World manufacturer identification "JM1"
World manufacturer identification "JM1"
WARNING:
This page is about a different car, the 2017 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.

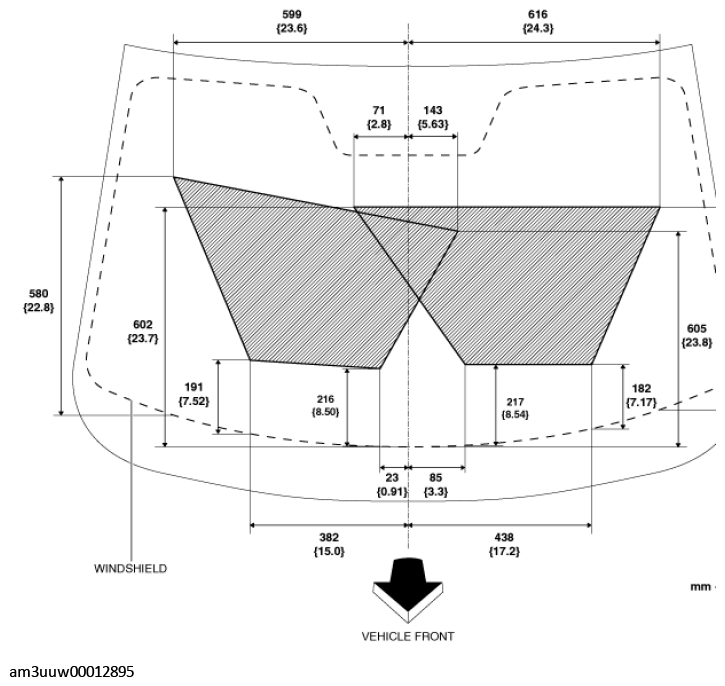

Fig 1: Windshield Washer Nozzle Adjustment Dimension - World Manufacturer Identification "JM1"
Courtesy of MAZDA MOTORS CORP.
