Rear Wiper Motor Installation Note

WARNING: This page is about a different car, the 2017 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.

When installing the rear wiper motor to the liftgate, temporarily tighten bolt (2) and install bolts in the order of (3), (2), and (1).

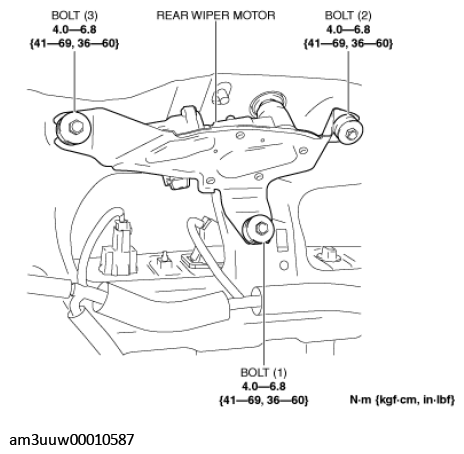

Fig 1: Installing Rear Wiper Motor To Liftgate With Torque Specification

Courtesy of MAZDA MOTORS CORP.
