Rear Wiper Arm: Notes

WARNING: This page is about a different car, the 2017 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.

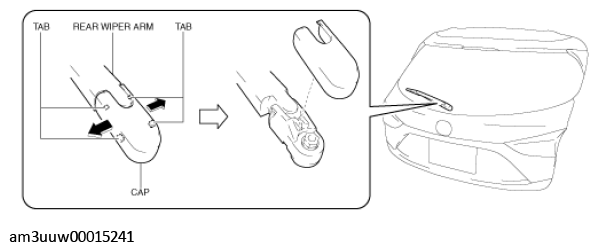

Pull the cap in the direction of the arrows shown in the figure and detach the cap tabs from the rear wiper arm.

Fig 1: Detaching Cap Tabs From Rear Wiper Arm
Courtesy of MAZDA MOTORS CORP.
Remove the cap.

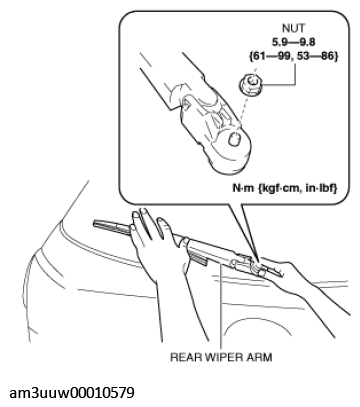

Remove the nut with the rear wiper arm pressed as shown in the figure.

Fig 2: Removing Nut With Rear Wiper Arm
Courtesy of MAZDA MOTORS CORP.

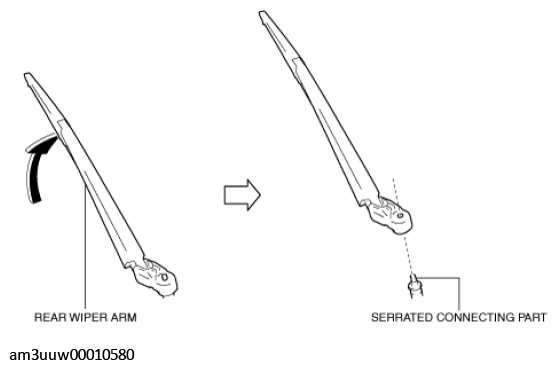

Raise the rear wiper arm as shown in the figure and pull out the rear wiper arm from the serrated connecting part. (See REAR WIPER ARM INSTALLATION NOTE .)

Fig 3: Pulling Out Rear Wiper Arm From Serrated Connecting Part
Courtesy of MAZDA MOTORS CORP.
Install in the reverse order of removal.
Adjust the rear wiper arm and blade. (See REAR WIPER ARM AND BLADE ADJUSTMENT .)
