Rear washer hose C installation note

WARNING: This page is about a different car, the 2017 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.

When installing the rear washer hose C to the headliner, cut the rear washer hose C according to the following dimensions.
Without sunroof

Fig 1: Rear Washer Hose C With Torque Specification (Without Sunroof)
Courtesy of MAZDA MOTORS CORP.

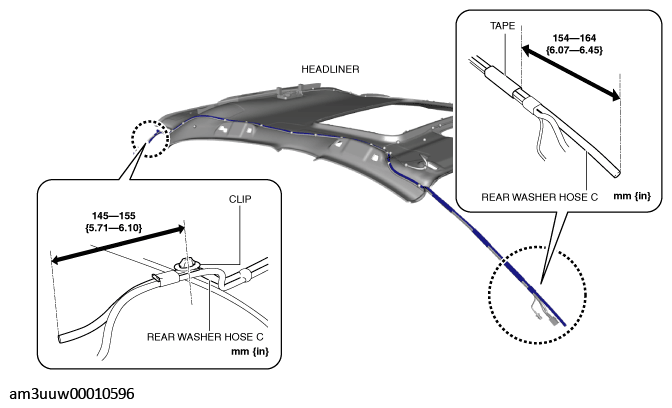

With sunroof

Fig 2: Rear Washer Hose C With Torque Specification (With Sunroof)
Courtesy of MAZDA MOTORS CORP.
