With Forward Sensing Camera (FSC)

WARNING: This page is about a different car, the 2017 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0, SKYACTIV-G 2.5] .)
  2. Remove the sensor cover. (See SENSOR COVER REMOVAL/INSTALLATION .)
  3. Disconnect the connector.

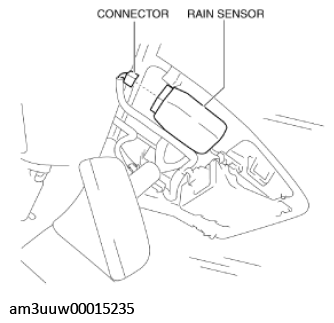

    Fig 1: Rain Sensor Connector
    G11453028Courtesy of MAZDA MOTORS CORP.
  4. Insert the remover tool into the gap between the rain sensor and the tab (1).

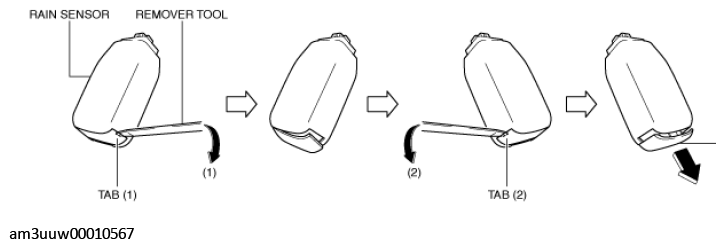

    Fig 2: Inserting Remover Tool Into Gap Between Rain Sensor And Tab
    G11453029Courtesy of MAZDA MOTORS CORP.
  5. Move the remover tool in the direction of the arrow (1) shown in the figure and detach the tab (1) from the rain sensor.
  6. Insert the remover tool into the gap between the rain sensor and the tab (2).
  7. Move the remover tool in the direction of the arrow (2) shown in the figure and detach the tab (2) from the rain sensor.
  8. Pull out the tab from the rain sensor.
  9. Move the rain sensor in the direction of the arrow shown in the figure and pull out the rain sensor from the bracket.

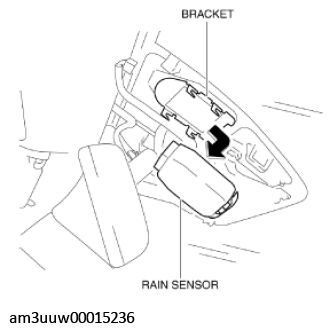

    Fig 3: Pulling Out Rain Sensor From Bracket
    G11453030Courtesy of MAZDA MOTORS CORP.
  10. Peel off the rain sensor protective sheet from the rain sensor.
    Fig 4: Rain Sensor Protective Sheet
    G11453027Courtesy of MAZDA MOTORS CORP.
  11. Install in the reverse order of removal. (See RAIN SENSOR INSTALLATION NOTE .)
  12. If the rain sensor is replaced, perform the following sensitivity setting procedure for the auto lights.
    CAUTION:
    • If the auto light sensitivity setting is not performed after replacing the rain sensor (auto light sensor), the rain sensor will be unable to detect the correct illumination level and the auto light/wiper system will not operate normally. If the rain sensor is replaced, perform the auto light sensitivity setting.
    1. Using the M-MDS, verify the current auto light sensitivity setting. (See CONTROL SYSTEM PERSONALIZATION FEATURES SETTING PROCEDURE .)
    2. Change the sensitivity setting to a value other than the auto light sensitivity setting verified in Step  1.
    3. Re-set to the auto light sensitivity setting verified in Step  1.
