Front Axle Location Index

WARNING: This page is about a different car, the 2017 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.

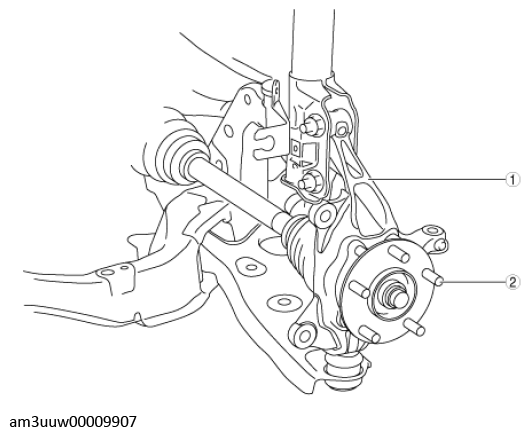

Fig 1: Front Axle Component Location

Courtesy of MAZDA MOTORS CORP.

COMPONENT DESCRIPTION

1	Wheel hub, steering knuckle (See WHEEL HUB, STEERING KNUCKLE INSPECTION .) (See WHEEL HUB, STEERING KNUCKLE REMOVAL/INSTALLATION .)
2	Wheel hub bolt (See FRONT WHEEL HUB BOLT REPLACEMENT .)
