Using commander switch

WARNING: This page is about a different car, the 2017 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.
  1. Switch the ignition to ACC or ON (engine off or on).
  2. Press the following buttons simultaneously for 2 s or more.
    • Volume dial
    • AUDIO button
    • FAVORITE button

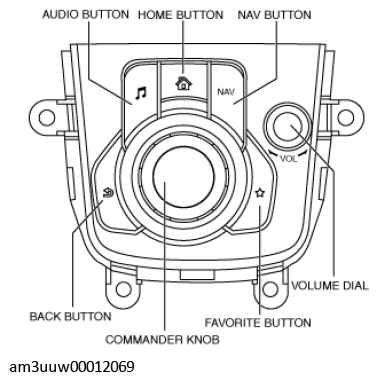

    Fig 1: Locating Audio Button, Home Button And Back Button
    G11467198Courtesy of MAZDA MOTORS CORP.
