DTC B12BD-87; Rear Mount Camera Transmission Error: Notes
WARNING: This page is about a different car, the 2017 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.
DETECTION CONDITION & POSSIBLE CAUSE
| Description |
Rear mount camera transmission error |
| Detection condition |
- The connectivity master unit cannot receive a signal from the rear mount camera for 5 s or more with the ignition switched ON (engine off or on).
|
| Fail-safe function |
Not applicable |
| Possible cause |
- Rear mount camera connector or terminal malfunction
- Connectivity master unit connector or terminal malfunction

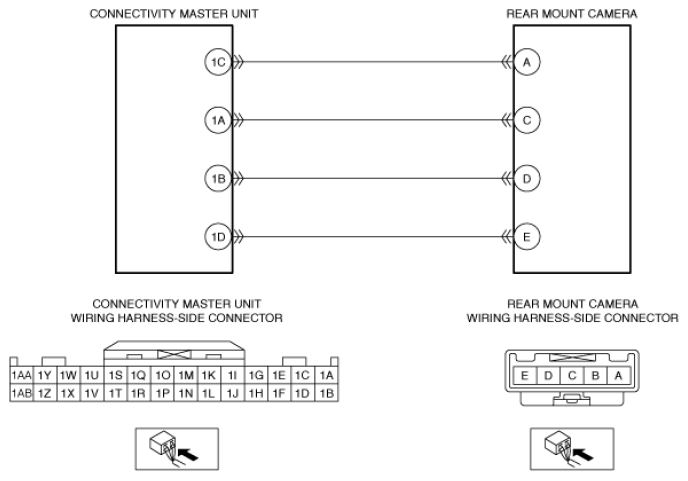

- Short to ground in wiring harness between connectivity master unit terminal 1A and rear mount camera terminal C
- Short to power supply in wiring harness between connectivity master unit terminal 1A and rear mount camera terminal C
- Open circuit in wiring harness between connectivity master unit terminal 1A and rear mount camera terminal C
- Rear mount camera malfunction
- Connectivity master unit malfunction
|
|
|
