DTC B12BD-11; Rear Mount Camera Circuit Malfunction: Notes
WARNING: This page is about a different car, the 2017 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.
DETECTION CONDITION & POSSIBLE CAUSE
| Description |
Rear mount camera circuit malfunction |
| Detection condition |
- The connectivity master unit detects a voltage value for the rear mount camera circuit of within 5.8 V or exceeding 6.2 V with the ignition switched ON (engine off or on).
|
| Fail-safe function |
Not applicable |
| Possible cause |
- Rear mount camera connector or terminal malfunction
- Connectivity master unit connector or terminal malfunction

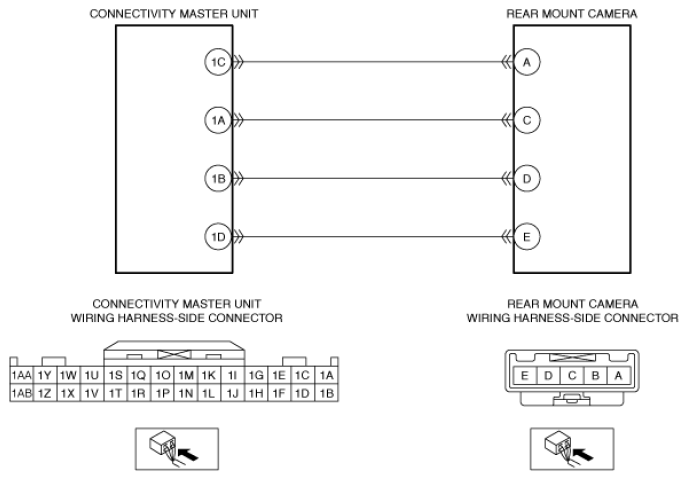

- Short to ground in wiring harness between connectivity master unit terminal 1C and rear mount camera terminal A
- Rear mount camera malfunction
- Connectivity master unit malfunction
|
|
|
