DTC B1238-87; Hd Image Transfer Circuit Error: Notes
WARNING: This page is about a different car, the 2017 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.
DETECTION CONDITION & POSSIBLE CAUSE
| Description |
HD image transfer circuit error |
| Detection condition |
- The connectivity master unit detects a communication error in the HD image transfer circuit for 20 times with the ignition switched ON (engine off or on).
|
| Fail-safe function |
Not applicable |
| Possible cause |
- Tuner and amp unit connector or terminal malfunction
- Connectivity master unit connector or terminal malfunction

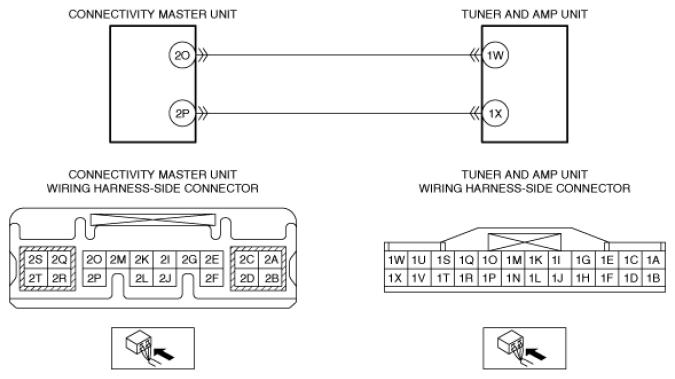

- Short to ground in wiring harness between the following terminals:
- Connectivity master unit terminal 2O and tuner and amp unit terminal 1W
- Connectivity master unit terminal 2P and tuner and amp unit terminal 1X
- Short to power supply in wiring harness between the following terminals:
- Connectivity master unit terminal 2O and tuner and amp unit terminal 1W
- Connectivity master unit terminal 2P and tuner and amp unit terminal 1X
- Open circuit in wiring harness between the following terminals:
- Connectivity master unit terminal 2O and tuner and amp unit terminal 1W
- Connectivity master unit terminal 2P and tuner and amp unit terminal 1X
- Tuner and amp unit malfunction
- Connectivity master unit malfunction
|
|
|
