DTC B116A-92; Microphone Circuit Malfunction: Notes
WARNING: This page is about a different car, the 2017 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.
DETECTION CONDITION & POSSIBLE CAUSE
| Description |
Microphone circuit malfunction |
| Detection condition |
- The connectivity master unit detected microphone circuit voltage of less than 7.7 V or more than 8.6 V with the ignition switched ON (engine off or on).
|
| Fail-safe function |
Not applicable |
| Possible cause |
- Microphone connector or terminal malfunction
- Connectivity master unit connector or terminal malfunction

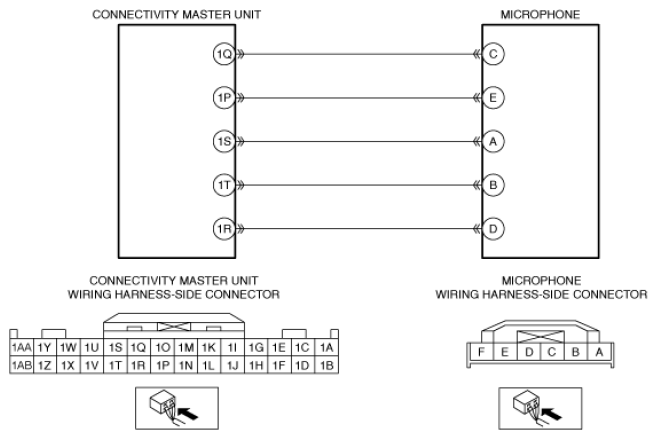

- Short to ground in wiring harness between connectivity master unit terminal 1Q and microphone terminal C
- Short to power supply in wiring harness between connectivity master unit terminal 1Q and microphone terminal C
- Open circuit in wiring harness between connectivity master unit terminal 1Q and microphone terminal C
- Microphone malfunction
- Connectivity master unit malfunction
|
|
|
