Without Bose®

WARNING: This page is about a different car, the 2017 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.

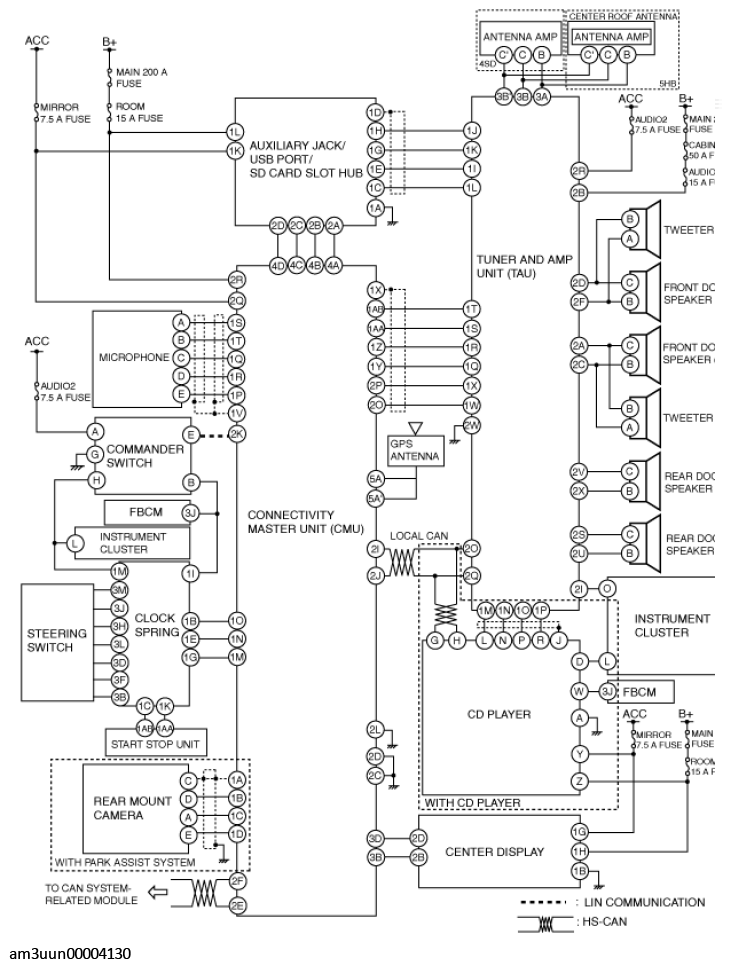

Fig 1: Entertainment System Wiring Diagram - Without Bose
G11467231Courtesy of MAZDA MOTORS CORP.
