Section 162 (Symptom Troubleshooting - Entertainment System - With Center Display)
>>
System Wiring Diagram [Entertainment System [With Center Display]]
>>
With Bose®
With Bose®
WARNING:
This page is about a different car, the 2017 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.

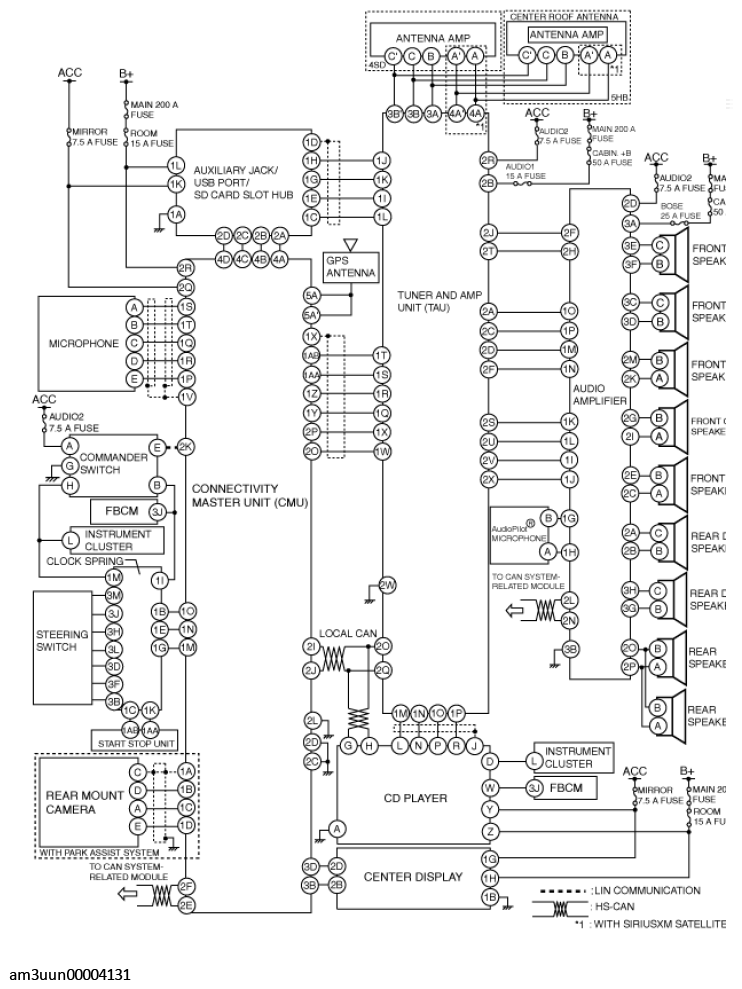

Fig 1: Entertainment System Wiring Diagram - With Bose
Courtesy of MAZDA MOTORS CORP.
