No. 1 Engine Mount Rubber And Front Crossmember Component Installation Note

WARNING: This page is about a different car, the 2017 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.
  1. When installing the front crossmember component to the vehicle, assemble the dust cover to the body-side installation area correctly to prevent water or foreign matter from penetrating. Install the dust cover carefully so as not to pinch the dust cover sponge to the body-side installation area or put a fold line on the sponge by contact.
    Fig 1: Dust Cover Sponge
    G09785628Courtesy of MAZDA MOTORS CORP.
  2. Temporarily tighten the bolts shown in the figure.

    World manufacturer identification "JM1"

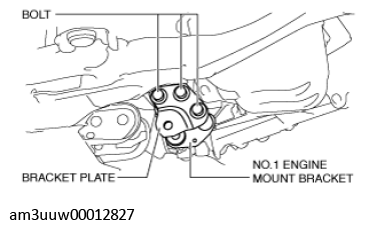

    Fig 2: World Manufacturer Identification JM1
    G11539555Courtesy of MAZDA MOTORS CORP.

    World manufacturer identification "3MZ"

    Fig 3: World Manufacturer Identification 3MZ
    G11539556Courtesy of MAZDA MOTORS CORP.
  3. Install the No. 1 engine mount rubber and temporarily tighten the bolts shown in the figure.

    World manufacturer identification "JM1"

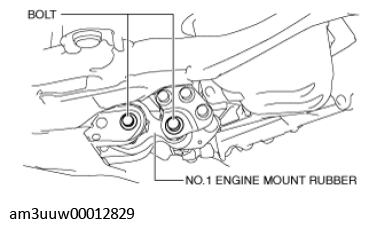

    Fig 4: World Manufacturer Identification JM1
    G11539557Courtesy of MAZDA MOTORS CORP.

    World manufacturer identification "3MZ"

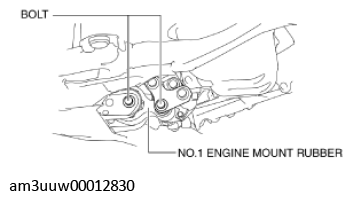

    Fig 5: World Manufacturer Identification 3MZ
    G11539558Courtesy of MAZDA MOTORS CORP.
  4. Tighten the No. 1 engine mount bracket and bracket plate installation bolts in the order shown in the figure.

    World manufacturer identification "JM1"

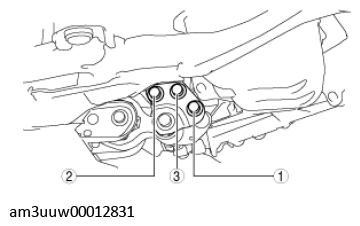

    Fig 6: Engine Mount Bracket And Bracket Plate Installation Bolts Tightening Sequence
    G11539559Courtesy of MAZDA MOTORS CORP.

    World manufacturer identification "3MZ"

    Fig 7: Engine Mount Bracket And Bracket Plate Installation Bolts Tightening Sequence
    G11539560Courtesy of MAZDA MOTORS CORP.

    Tightening torque

    84-98 N.m {8.6-9.9 kgf.m, 62-72 ft.lbf}

  5. Tighten the No. 1 engine mount rubber installation bolts shown in the figure.

    World manufacturer identification "JM1"

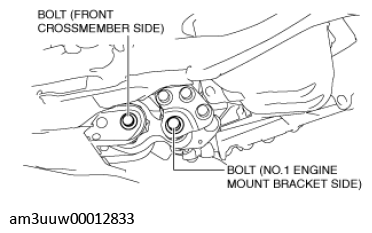

    Fig 8: Front Cross Member And No 1 Engine Mount Bracket Side Bolts
    G11539561Courtesy of MAZDA MOTORS CORP.
    TIGHTENING TORQUE SPECIFICATION

    Installation position Tightening torque
    No. 1 engine mount bracket side 130-151 N.m {14-15 kgf.m, 96-111 ft.lbf}
    Front crossmember side 130-164 N.m {14-16 kgf.m, 96-120 ft.lbf}

    World manufacturer identification "3MZ"

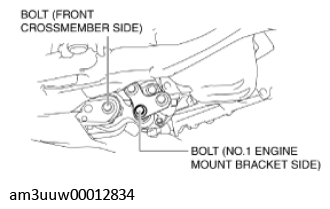

    Fig 9: World Manufacturer Identification 3MZ
    G11539562Courtesy of MAZDA MOTORS CORP.
    TIGHTENING TORQUE SPECIFICATION

    Installation position Tightening torque
    No. 1 engine mount bracket side 140-163 N.m {15-16 kgf.m, 104-120 ft.lbf}
    Front crossmember side 130-164 N.m {14-16 kgf.m, 96-120 ft.lbf}
