Shift Panel Removal/Installation: MTX

WARNING: This page is about a different car, the 2016 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0, SKYACTIV-G 2.5] .)
  2. Remove the upper panel. (See UPPER PANEL REMOVAL/INSTALLATION .)
  3. Remove the shift lever knob. (See MANUAL TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION [C66M-R] .)

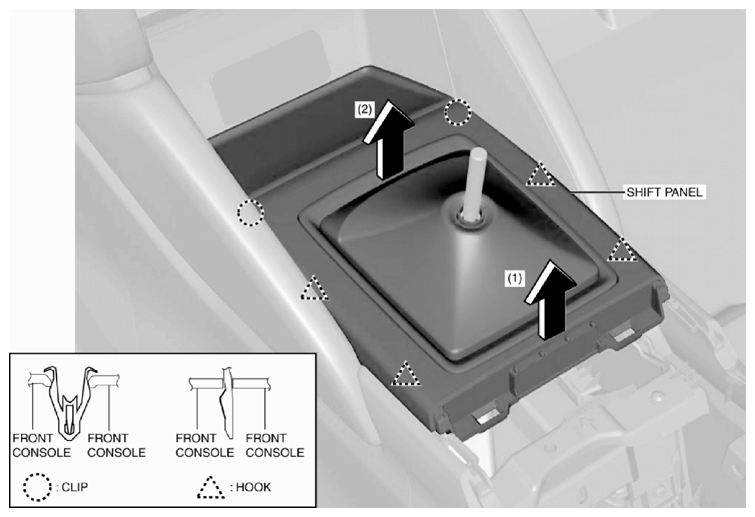

  4. Move the shift panel in the order of arrows (1) and (2) shown in the figure, and detach the clips and hooks from the front console.
    Fig 1: Moving Shift Panel
    G10939060Courtesy of MAZDA MOTORS CORP.

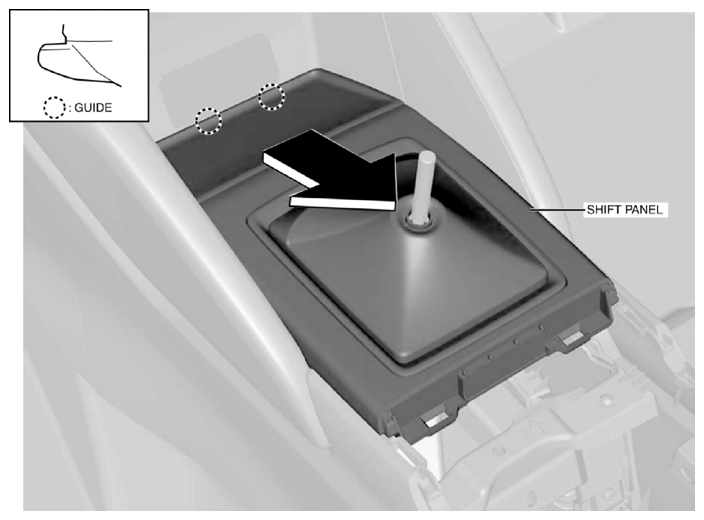

  5. Move the shift panel in the direction of the arrow shown in the figure and remove it while detaching the guides.
    Fig 2: Moving Shift Panel
    G10939061Courtesy of MAZDA MOTORS CORP.

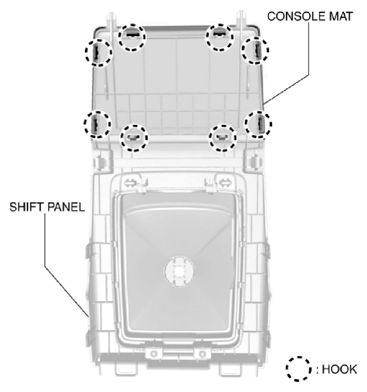

  6. When removing the console mat, detach the hooks from the shift panel.
    Fig 3: Detaching Hooks From Shift Panel
    G10939062Courtesy of MAZDA MOTORS CORP.
  7. Install in the reverse order of removal.
